  • Type B computer screen display hydraulic universal testing machine.

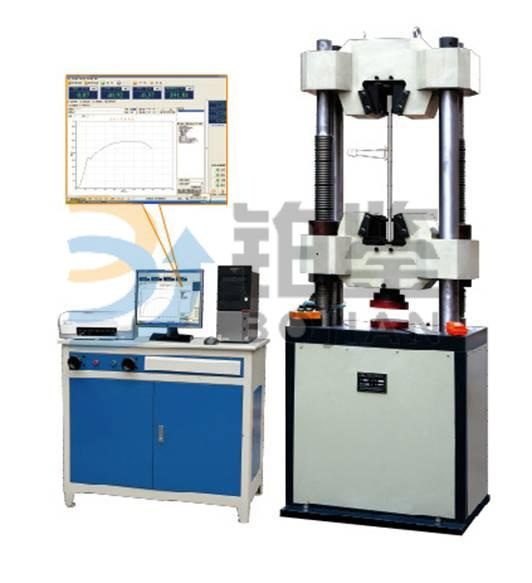

Product name:Type B computer screen display hydraulic universal testing machine.

Product model:BJWE-W

Product range:1000KN

Immediate consultationType B computer screen display hydraulic universal testing machine.Online Message

<
>

Product introduction

Computer screen explicit hydraulic universal testing machine adopts pillar structure, use of hydraulic load, the computer shows the test result, convenient operation, accurate and reliable test readings of general steel and other metal materials can do tensile, compression, bending and shear test, can also do general materials, such as plastic, cement and concrete compression and bending test.

1. It is equipped with plunger type high pressure oil pump in the shell of the dynamometer, which is driven by the motor, and the operation is smooth and the sound is normal.The stretching space is located above the host, and the compression and bending test space is located between the beam and the workbench under the host.

2. The lower beam shall adopt the motor driven by the reducer, the chain drive mechanism and the screw side transmission to realize the adjustment of stretching and compression space.

3. All operation of the machine can be completed by computer control, and the operation is convenient and safe.

4 explicit hydraulic universal testing machine, the screen by loading speed display function, can realize the requirements of the sample loading speed, the control part and indicates some highly appropriate, to facilitate participants to operation and observation.



Standard of execution

GB/ t3159-2008 hydraulic universal testing machine

GB/ t228-2002 metal materials room temperature tensile test method

GB/T 7314-2005 metal materials room temperature compression test method

GB/T 232-2010 metal materials bending test method


Functional characteristics

This machine adopts the pillar structure, the use of hydraulic load, the computer shows the test result, convenient operation, accurate and reliable test readings of general steel and other metal materials can do tensile, compression, bending and shear test, can also do general materials, such as plastic, cement and concrete compression and bending test.

1. It is equipped with plunger type high pressure oil pump in the shell of the dynamometer, which is driven by the motor, and the operation is smooth and the sound is normal.The stretching space is located above the host, and the compression and bending test space is located between the beam and the workbench under the host.

2. The lower beam shall adopt the motor driven by the reducer, the chain drive mechanism and the screw side transmission to realize the adjustment of stretching and compression space.

3. All operation of the machine can be completed by computer control, and the operation is convenient and safe.

4. The load speed display function of the machine can realize the loading speed of the sample, and the control part and the indication part are highly suitable for the operation and observation of the tester.




Technical parameter

Model

BJWE-W300B

BJWE-W600B

BJWE-W1000B

Maximum test forceKN

300

600

1000

Structure form

2 column +2 screw.

Tester grade

Level 1 or 0.5

Test force measurement range.

2% 100% FS matching 0.4% 100% FS

Deformation measurement accuracy.

Within the range of 2%-100% of the extension meter, it is   superior to + 1%.

Displacement resolution

0.01mm

The piston strokemm

200

200

250

Maximum drawing spacemm

550

550

550

Maximum compression spacemm

500

500

500

The circle sample holds the diameter.mm

Φ6-Φ26

Φ13-Φ40

Φ13-Φ60

The maximum clamping thickness of flat specimen.mm

0-15

0-30

0-40

The maximum clamping width of flat sample.

80

80

120

Sample holding mode.

Internal hydraulic pressure tightening.

The transmission way

Sprocket chain drive.

Main frame size (length * width * height)

About 900*650*2050

About 1100*850*2250

Table control cabinet size (length * width * height)

About 1100*700*930

The weightkg

About 2200

About 2500

About 3000

Note: stretch space and compression space can be   customized according to customers' needs.
